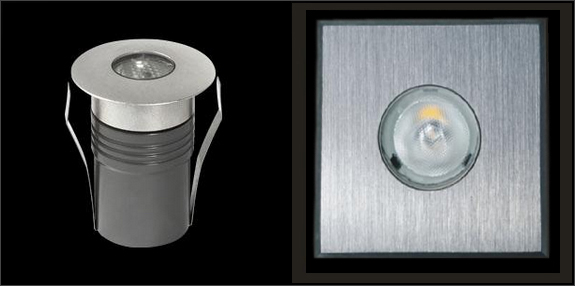

FL-ING-0116-3K ETL Listed LED Inground Light
Specifications For Part Numbers: FL-ING-0116R-3K(Round) & FL-ING-0116S-3K (Square)
UNIT SPECIFICATIONS
INPUT VOLTAGE (V) 24VDC
WATTAGE CONSUMPTION: 2.6
LUMENS: 110 LM
HOUSING: 12# DIE-CASTING GREY POWDER COATED ALUMINUM.
T=60 -80ΜM. ADHESION OF ISO CLASS 1/ASTM CLASS 4B
FRONT RING: STAINLESS STEEL SUS 316#
LENS: OPTICAL LENS, EFFICIENCY≥85%
GLASS: STEP TEMPERED GLASS. T=7MM
LOADING CAPACITY: FULL AREA 1704KGS
GASKET: MOLDING SHAPED SILICONE SEAL
OPERATING TEMPERATURE: -20℃~40℃
POWER CABLE: 24VDC LOW VOLTAGE
MOUNTING SLEEVE: PVC 011#
RATING: IP67 OUTDOOR
ETL LISTED
LENS: B33D

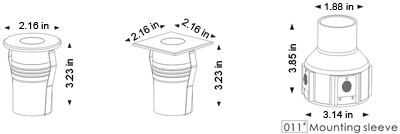

UNIT DIMENSIONS
UNIT SPECIFICATIONS |
|---|
|
INPUT VOLTAGE (V) 24VDC WATTAGE CONSUMPTION: 2.6 LUMENS: 110 LM HOUSING: 12# DIE-CASTING GREY POWDER COATED ALUMINUM. T=60 -80ΜM. ADHESION OF ISO CLASS 1/ASTM CLASS 4B FRONT RING: STAINLESS STEEL SUS 316# LENS: OPTICAL LENS, EFFICIENCY≥85% GLASS: STEP TEMPERED GLASS. T=7MM LOADING CAPACITY: FULL AREA 1704KGS GASKET: MOLDING SHAPED SILICONE SEAL OPERATING TEMPERATURE: -20℃~40℃ POWER CABLE: 24VDC LOW VOLTAGE MOUNTING SLEEVE: PVC 011# RATING: IP67 OUTDOOR ETL LISTED LENS: B33D UNIT DIMENSIONS |
