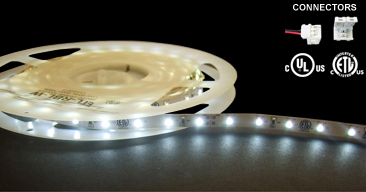

Flexible Ribbon Led Strip (Non-Waterproof)

As of April 2014, we offer this ribbon Non-UL in 4000K Neutral White (Part#: FL-RBL-NW) and UL Approved in 2700K Warm White and 4000K Neutral White (Part#s: UL-RBL-WW-2700K and UL-RBL-NW)

TECHNICAL PARAMETERS:

Led Light Source: 3528 SMD
Standard: 300 LEDs per roll (16.25 feet)
Beam Angle: 120 degrees
Working Voltage: 12VDC (FL-RBL-XX & UL-RBL-XX), 24VDC (ETL-RBL-XX)
Working Current: 400mA per meter (3.28 feet)
Power Consumption: 1.50 watts per foot (24watts per roll), except for ETL-RBL-RGB (45watts per roll) and UL-RBL-RGB (36watts per roll)
Led Light Output Per Roll: W:2100lm, NW:2000lm, WW:1800lm
Package: 16.25 feet per roll (5 meters)

Part Numbers
FL-RBL-XX Colors: FL-RBL-WW (Warm White, 3000K), FL-RBL-NW (Neutral White, 4000K), FL-RBL-W (Cool White, 5000K), FL-RBL-RGB (Multiple Color Change), FL-RBL-BL (Blue), FL-RBL-RD (Red), FL-RBL-AM (Amber), and FL-RBL-GR (Green)
ETL-RBL-XX Colors: ETL-RBL-WW (Warm White), ETL-RBL-W (Cool White), ETL-RBL-RGB (Multiple Color Change)
UL-RBL-XX Colors: UL-RBL-WW-2700K (Warm White, 2700K) UL-RBL-WW (Warm White, 3000K), UL-RBL-NW (Neutral White, 4000K), UL-RBL-W (Cool White, 5000K), UL-RBL-RGB (Multiple Color Change)



ACCESSORIES TO USE WITH THIS RIBBON:

Connectors: WC2-8 / JC2-8
Connectors RGB: WC4-10 / JC4-10
Controllers for FL-RBL-RGB: RGB Controllers
What tracks can be used with this ribbon: Click Here
