HOME > LED PRODUCTS > LED RIBBON TRACKS

LED RIBBON TRACKS

The lenses available with most tracks are clear and frosted.
ALL LENSES CAN BE SNAPPED INTO THE TRACK FROM THE TOP.

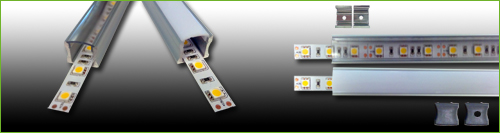

NEW LED RIBBON TRACK0-N (CLEAR) AND TRACK1-N (FROSTED)

MEASUREMENTS: (L x W x H) 39 in. x 11/16 in. x 5/8 in. | Inner Width: 7/16"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: All Non-Waterproof LED Ribbons (except Non-Waterproof 2-Line Ribbon and UL Approved Ultra High Bright Ribbon)
NOT TO BE USED WITH: All Waterproof LED Ribbons, Non-Waterproof 2-Line Ribbon
__________________________________________________________________________________________

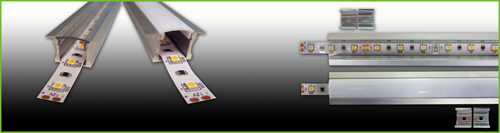

LED RIBBON TRACK6-N (CLEAR) AND TRACK7-N (FROSTED)



MEASUREMENTS: (L x W x H) 39 in. x 1 in. x 9/16 in. | Inner Width: 7/16"

COMES WITH CLIPS: Yes (Two)
TO BE USED WITH: All Non-Waterproof LED Ribbons (except Non-Waterproof 2-Line Ribbon and UL Approved Ultra High Bright Ribbon)
NOT TO BE USED WITH: All Waterproof LED Ribbons, Non-Waterproof 2-Line Ribbon, and 164ft 120V Ribbon
__________________________________________________________________________________________

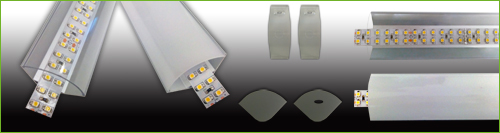

NEW LED RIBBON TRACK10-1 (CLEAR), TRACK11-1 (FROSTED)



MEASUREMENTS: (L x W x H) 39in. x 1 1/8 in. x 1 1/8 in. | Inner Width: 7/8"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: All Non-Waterproof and Waterproof LED Ribbons
NOT TO BE USED WITH: 164ft 120V Ribbon
__________________________________________________________________________________________

LED RIBBON TRACK12 (FROSTED)



MEASUREMENTS: (L x W x H) 39 in. x 13/16 in. x 13/16 in. | Inner Width: 5/8"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: Every LED Ribbon Tape We Carry
__________________________________________________________________________________________

LED RIBBON TRACK14-N (CLEAR) AND TRACK15-N (FROSTED)



MEASUREMENTS: (L x W x H) 39in. x 1 in. x 1/4 in. | Inner Width: 1/2"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: All Non-Waterproof (except Non-Waterproof 2-Line Ribbon)
NOT TO BE USED WITH: All Waterproof Ribbons and 164ft 120V Ribbon
__________________________________________________________________________________________

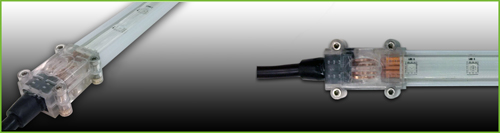

LED RIBBON TRACK16-N



MEASUREMENTS: (L x W x H) 39in. x 3/4 in. x 1/2 in. | Inner Width: 3/4"

TO BE USED WITH: Only 164ft 120V Ribbon* - *NOTE Only the strip will fit into track; connectors will not
__________________________________________________________________________________________

LED RIBBON TRACK17-N (CLEAR) AND TRACK18-N (FROSTED)



MEASUREMENTS: (L x W x H) 39in. x 11/16 in. x 5/16 in. | Inner Width: 1/2"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: All Non-Waterproof (except Non-Waterproof 2-Line Ribbon) and Waterproof LED Ribbons
NOT TO BE USED WITH: Non-Waterproof 2-Line Ribbon, All Waterproof Ribbons, and 164ft 120V Ribbon
__________________________________________________________________________________________

LED RIBBON MINI TRACK19 (CLEAR) AND MINI TRACK20 (FROSTED)



MEASUREMENTS: (L x W x H) 39in. x 7/16 in. x 1/4 in. | Inner Width: 3/16"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: Our Mini LED Ribbon (FL-RBLM Non-Waterproof LED Ribbons)
NOT TO BE USED WITH: Any other LED Ribbons
__________________________________________________________________________________________

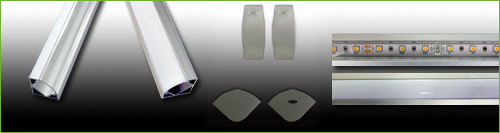

LED RIBBON TRIANGULAR TRACK21 (CLEAR) AND TRIANGULAR TRACK22 (FROSTED)



MEASUREMENTS: (L x W x H) 39in. x 1 in. x 3/4 in. | Inner Width: 1/2"

COMES WITH CLIPS: Yes (Two)
COMES WITH END CAPS: Yes (Two)
TO BE USED WITH: All Non-Waterproof (except Non-Waterproof 2-Line Ribbon) and Waterproof LED Ribbons
NOT TO BE USED WITH: Non-Waterproof 2-Line Ribbon, All Waterproof Ribbons, and 164ft 120V Ribbon
