HOME > MINILIGHTS > FL-1204 LED

FL-1204 LED



Click Here to view and print out our spec sheet for this product (Adobe Acrobat Reader 9.0 or higher required).

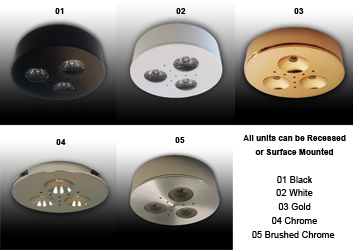

ITEM IDs:
FL-1204 01ED: Black Finish / Edison LED Undercabinet, 3 watts, (WW) Warm White, (W) Cool White
FL-1204 02ED: White Finish / Edison LED Undercabinet, 3 watts, (WW) Warm White, (W) Cool White
FL-1204 05ED: Brushed Chrome / Edison LED Undercabinet, 3 watts, (WW) Warm White, (W) Cool White
FL-1204 03: Gold Finish / CREE LED Undercabinet, 3 watts, (W) Cool White
FL-1204 04: Chrome Finish / CREE LED Undercabinet, 3 watts, (W) Cool White

FEATURES:
Dimmable with magnetic low voltage dimmer.
Warm White 210 Lumens.
Cool White 240 Lumens.
Long Lifetime: >50,000 hours
Energy Conservation: Save 80% more energy compared with traditional lighting fixtures Eco-friendly: no UV or RF interference, no Mercury or Lead
Lumen maintenance: 70% at 30,000 hours
Surface mounted with screws
3 watts Recessed or surface
AMP Connector
3 feet long wire
Ceiling Cutout 2 1/2"
This item can be used with an additional 3Ft. Extension Cord (1201 91) and 6 Lights Distribution Box (1201 90)
UL Approved

STRONG ADVANTAGES:
With built-in constant voltage LED driver, powered by 12VDC.
Adopt 3W high lumen CREE and Edison LED to guarantee the high brightness and low working temperature.

Installation Technical Help
______________________________________________________________________________________

ACCESSORIES:
This Non-dimmable LED Driver (FL-36-LED-6B) can be used with LED Puck Light listed above:


Specifications:

Input Voltage: 100-240V
Output Voltage: 12V
Output Max. Power: 36W
Power supply comes with 6-light Distribution Box
Plug-in wire 5'
Distribution Box wire 3'


Want to make the puck light dimmable? Choose from one of our dimmable drivers below:

LED-12W-12V-DIM (Dimmable Electronic Constant Voltage Driver | Input 120VAC, Output 12W 12VDC)
LED-12W-12V-DIM-200 (Dimmable Electronic Constant Voltage Driver | Input 220VAC, Output 12W 12VDC)
LED-26W-12V-DIM (Dimmable Electronic Constant Voltage Driver | Input 120VAC, Output 26W 12VDC)
LED-26W-12V-DIM-200 (Dimmable Electronic Constant Voltage Driver | Input 220VAC, Output 26W 12VDC)
LED-48W-12V-DIM (Dimmable Electronic Constant Voltage Driver | Input 120VAC, Output 48W 12VDC)
LED-48W-12V-DIM-200 (Dimmable Electronic Constant Voltage Driver | Input 220VAC, Output 48W 12VDC)

Compatible Dimmers:

Lutron's DIVA C-L: Model DVCL-153P
Lutron's MAESTRO C-L: Model MACL-153MH
