FET-300W-12V AC - REPLACES LET-301-AC, LET-303-AC, AND LVT-303-AC

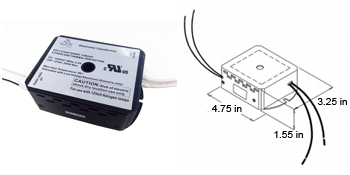

PLEASE CHECK DIMENSIONS TO MAKE SURE IT FITS INSIDE YOUR SYSTEM, SINCE THIS UNIT IS SLIGHTLY LARGER THAN THE LET-301-AC AND WIDER THAN THE LET-303-AC AND LVT-303-AC.

Specs
Item ID: FET-300W-12V AC
Input: 120V AC 50/60Hz
Output: 2.5 A 12V AC
Max Wattage: 300W
Weight: 320g
Center Hole DIA: 7/16"
To use with: Incandescent & Halogen Bulbs
Efficiency higher than 85%
Power Factor >98%
Case TC* 90C Max
Protection Input/ Output
Storage -30C/ +90C
Humidity 95% RH max
IP Rating IP 60/65
Standard Dimming ELV Dimmable

Features
No load technology, works with Halogen bulbs
Isolated output power per NEC and UL safety requirements
UL recognized, meet UL 2108 requirements
Auto-reset; Short circuit, Overload and Thermal protection
Soft start
Dimmable and available with special dimming features
Low profile, small compact design to fit in most enclosures
