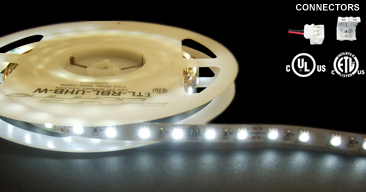

Flexible Ribbon Ultra High Brightness Led Strip (Non-Waterproof)

September 2015: NEW UL 32.50 feet, 600 LEDs, 24VDC, 144W RGB roll available: Part# UL-RBL-UHB-RGB-10M

TECHNICAL PARAMETERS:

Led Light Source: 0.3W 5050 SMD LED
Standard: 300 LEDs per roll (16.25 feet), 600 LEDs per roll (32.50 feet for Ref# UL-RBL-UHB-RGB-10M)
Beam Angle: 120 degrees
Working Voltage: 12V DC (FL-RBL-UHB-XX & UL-RBL-UHB-XX), 24VDC (ETL-RBL-UHB-XX & UL-RBL-UHB-RGB-10M)
Working Current: 1.2A per meter (3.28 feet)
Power Consumption: 5 watts per foot (80watts per roll), 144watts per roll for Ref# UL-RBL-UHB-RGB-10M
Led Light Output Per Roll: W: 6000lm, NW: 5800lm, WW: 5400lm

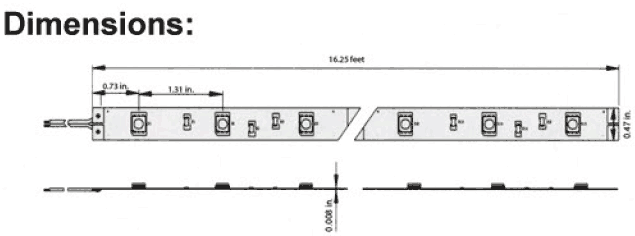

Package: 16.25 feet per roll (5 meters)
FL-RBL-UHB-XX Colors: FL-RBL-UHB-WW (Warm White), FL-RBL-UHB-W (Cool White), FL-RBL-UHB-RGB (Multiple Color Change), FL-RBL-UHB-BL (Blue), FL-RBL-UHB-RD (Red), FL-RBL-UHB-AM (Amber), FL-RBL-UHB-GR (Green)
ETL-RBL-UHB-XX Colors: ETL-RBL-UHB-WW (Warm White), ETL-RBL-UHB-W (Cool White), ETL-RBL-UHB-RGB (Multiple Color Change)
UL-RBL-UHB-XX Colors: UL-RBL-UHB-WW-2700K (Warm White, 2700K), UL-RBL-UHB-WW (Warm White, 3000K), UL-RBL-UHB-W (Cool White), UL-RBL-UHB-RGB (Multiple Color Change), FL-RBL-UHB-RGB-10M (Multiple Color Change 32.50ft Roll)



ACCESSORIES TO USE WITH THIS RIBBON:

Connectors: WC2-12 / JC2-12
Connectors RGB: WC4-12 / JC4-12
Controllers for FL-RBL-UHB-RGB: RGB Controllers
Track that can be used with this ribbon: TRACK0 or TRACK1
The FL-RBL-UHB-RGB requires TRACK2 or TRACK3
